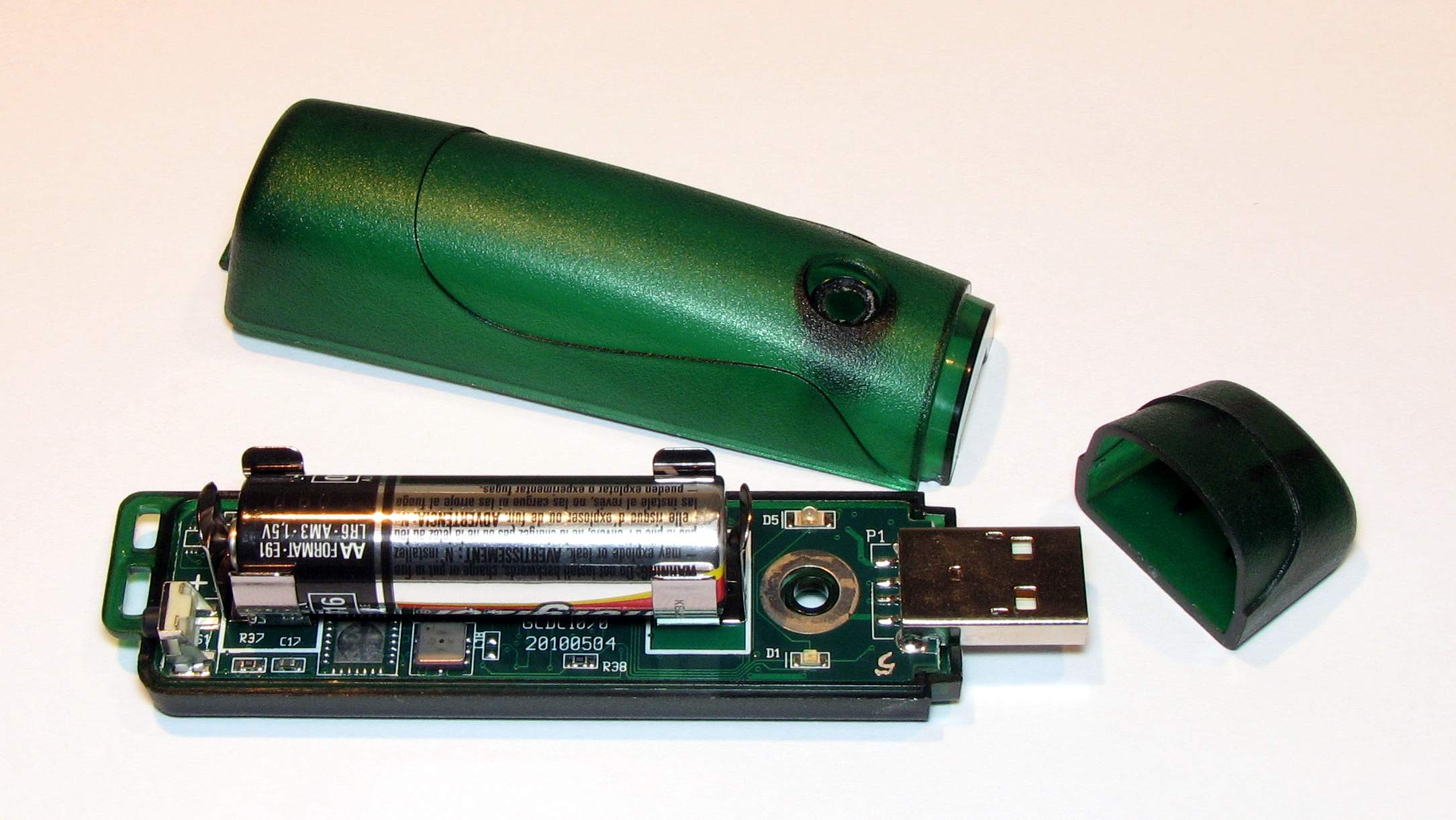

Barometric Pressure USB Data Logger B1100-1
General
The B1100-1 uses a high precision digital sensor that makes the B1100-1 suitable for altitude measurements, vertical velocity indication, and weather monitoring. Data is recorded at a user selectable period ranging between 10 Hz to one sample every 32 seconds. The B1100-1 can be programmed to start and stop at specific times each day. When connected via the USB to a personal computer, the B1100-1 appears as a standard mass storage device containing the comma delimited data files and user setup files. The commercial standard "AA" battery provides extended life operation suitable to long term data acquisition applications.
In Stock. Usually ships within 24hrs.
Features
Data Sheet
For more details, specification and how to use please look at the B1100-1 data sheet (.pdf).
Example Applications
Analysis Tools
While no special tools are required to analyze data, we have provided a tool that helps find and save the more interesting portions of a data collection set. Details can be found here
Configuring
A simple text file is used to configure the sample rate, temperature interleaving, data file size, and start/stop time. Click here for an example B1100-1 configuration file.
Data Format
Data is contained in easily readable plain text files. Meta data starts with a ";" and the comma delimited data (.csv) can be analyzed with a spreadsheet or text processor. Click here for an example B1100-1 data file.
